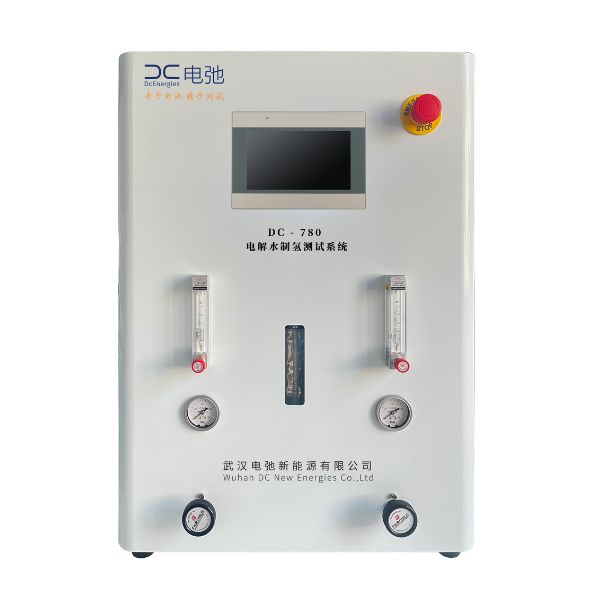

DC 780 Hydrogen production test system by water electrolysis
Brand: DcEnergies
Model: DC 780
Origin：Made in China
Manufacturers：Wuhan DC New Energies Ltd ,. Co
Product features
· Both PEM and AEM are compatible
· The self-developed software can realize up to 8 online machines
· The tabletop type is small in size and suitable for laboratories
DC 780 Hydrogen production test system by water electrolysis
DC 780 Product features
· Both PEM and AEM are compatible
· The self-developed software can realize up to 8 online machines
· The tabletop type is small in size and suitable for laboratories
DC780 hardware advantages
High precision flowmeter detects H2\O2 flow rate in real time
Stable flow control and temperature control
High precision back pressure valve ensures stable pressure
Single-machine PEM and AEM are compatible
Self-developed condensing, drying and filtering modules
DC 780 Software benefits
Fast data extraction speed of 5 points per second
Safety logic to ensure battery test stability
Check test conditions edit screen, fast programming
Data is displayed in real time, and key data is displayed separately
Historical data show comparison
Supports simultaneous 8-channel detection
Main technical parameters
| Equipment | DC 780 Water Electrolysis Test System for Hydrogen Production |
| Hydrogen and Oxygen measurement systems | |
| Hydrogen flow measurement range | 2L |
| Hydrogen flow measurement accuracy | ± (0.8% m.v. + 0.2% full scale) |
| Hydrogen treatment method | Water vapor separation, condensation, drying |
| Oxygen flow measurement range | 1L |
| Accuracy of oxygen flow measurement | ± (0.8% m.v. + 0.2% full scale) |
| Oxygen treatment | Water vapor separation, condensation, drying |
| Nitrogen purge flow control range | 2L (Manual Float) |
| Power | 500W |
| Oxygen in hydrogen | Matching |
| Hydrogen in oxygen | Matching |
| Gas pressure control system | |
| Measure the sampling point | Hydrogen pressure, oxygen pressure |
| Pressure measurement range | 0-3 bar (gauge) |
| Pressure measurement accuracy | ± 1%FS |
| Pressure control methods | Manual (optional automatic) |
| Explosion-proof design | ExiaIICT6+ExdIICT6 |
| Deionized water | |
| Flow control range | 10~500mL/min |
| Flow control accuracy | ±1%FS |
| Temperature control range | R.T+5℃~90℃ |
| Temperature control accuracy | ±1°C (steady state) |
| Electrical conductivity | 0.01~200us/cm accuracy±1.5%FS |
| Hydrate | Automatic + Manual |
| Power supply | |
| Voltage range | 0-20V |
| Voltage accuracy | ＜0.05%+10mV |
| Current range | 0-100A |
| Current accuracy | ＜0.1%+100mA |
